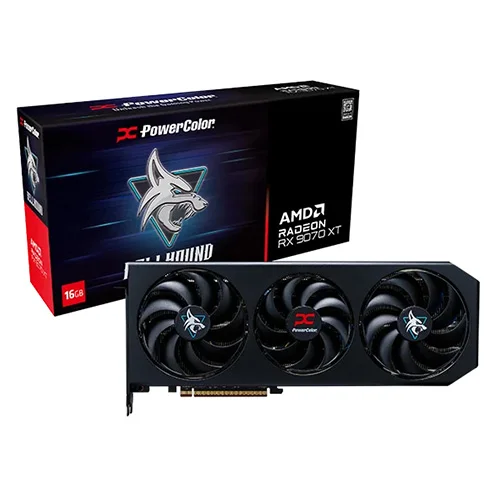

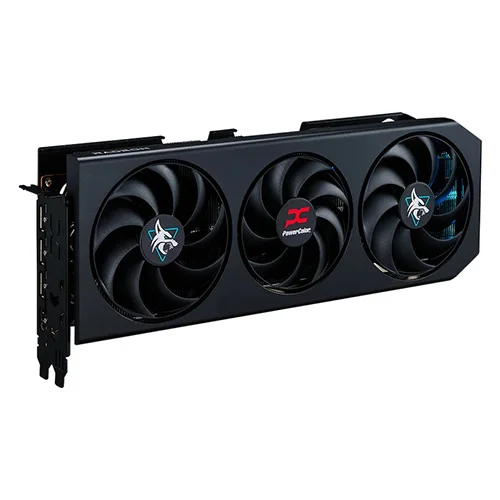

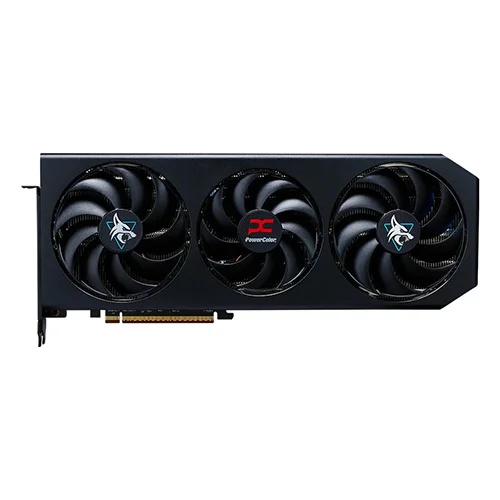

PowerColor Hellhound RX 9070 XT OC 16GB GDDR6 Graphics Card

Features:
Forged for Power and Precision
The PowerColor Hellhound RX 9070 Series delivers unmatched performance and reliability. Featuring a triple-ring fan design , 6 x 6φ heatpipes, and a copper plate in direct contact with the GPU and VRAM, it ensures exceptional cooling efficiency. Engineered with a excellent phase VRM design and DrMOS with IMON real-time digital monitoring, it’s built to provide stable, high-performance output for intense gaming sessions. The Hellhound is your ultimate ally in the heat of battle
Metal Reinforced Backplate
Dual BIOS
High-Quality PCB Design
High-Efficiency DrMOS Power Module
Icy Blue Lighting Effects
Pure Copper Nickel-Plated Heatpipes
High-Efficiency Ring Blade Fans
Two 8-Pin PCI-E Power Connectors
TBP Monitoring with 12V Source Detection
Supports PCIe 5.0 x16
Honeywell PTM7950
High Quality Japanese Dual Ball Bearings
Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.
Intelligent Fan Controller
Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60℃ and shut down below 50℃. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.
High-Efficiency Ring Blade Fans
Designed for passionate gamers, delivering the coolest experience. Exclusive ring blade design with up to 9 blades improves fan speed while maintaining low noise levels. It enhances air pressure and airflow, achieving optimal cooling performance.
Low-Turbulence Reverse Fan Design
The outer two fans feature a reverse-rotation design that effectively reduces air turbulence during intake, enhancing cooling efficiency. This design not only improves airflow and air pressure but also reduces operational noise, allowing you to enjoy efficient cooling with a quieter gaming experience.
GPU Direct-Contact Copper
Plate Efficient heat conduction at all times. Features a large, smooth nickel-plated copper base covering the GPU and memory, capable of rapidly absorbing and evenly dissipating heat. Ensures effective cooling even during high-speed operations.
Vertical Fin Heatsink
A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.
Optimum Heatpipe Arrangement
A set of 6 x 6φ nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.
High-Thermal Conductivity Honeywell PTM7950
The phase-change properties of PTM7950 ensure that micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
High-Efficiency DrMOS Power Module
Providing reliable support for every gamer, the Hellhound features a 10+1 phase power design, along with a dedicated 3+2 phase memory power supply . Equipped with conductive polymer capacitors, it ensures long lifespan, high conversion efficiency, and effectively reduces power loss during transmission.
High Quality PCB Design
Utilizes a 12-layer high thermal conductivity PCB material with a 2oz power layer, reducing signal attenuation during high-frequency transmission. This design meets the stability and high-current demands of advanced GPUs.
Reinforced Metal Backplate
Crafted from durable metal material, the backplate not only enhances overall structural support to prevent PCB bending and component damage but also integrates an excellent thermal design. Specially designed ventilation holes on the backplate improve heat dissipation efficiency and ensure stability even under heavy loads, providing users with safer and more reliable protection.
Dual BIOS Mode
Hellhound graphics cards feature Dual BIOS built-in and a switch for easy swapping.
OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance.”
LED Lighting in Icy Blue
Showcasing a cool and elegant aesthetic, the icy blue LED lighting sets a high-class tone. Gamers can easily switch between modes using the dual-stage switch, letting the Hellhound dominate your gaming world and deliver a unique visual feast.
